W65C22S Versatile Interface Adapter (VIA)

Interface Signals Relationship

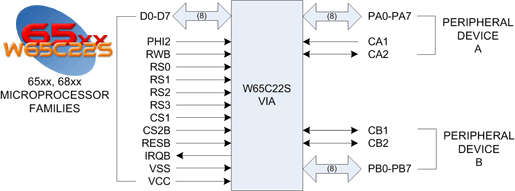

65C22 Interface Signals Relationship

Features of the W65C22S
  • 2 x 8−bit, bi−directional peripheral I/O Ports
  • 2 x 16−bit programmable Interval Timer/Counters
  • Synchronous Serial bi−directional peripheral I/O Port
  • Enhanced "Handshake" feature works with either 8− or 8/16−bit systems
  • Latched Input/Output Registers on both I/O Ports
  • Programmable Data Direction Registers
  • TTL compatible I/O peripheral lines
  • 1.8V − 5V Power Supply
  • Bus compatible with 14 MHz W65C02S and W65C816S
  • Compatible with the 65xx and 68xx family of microprocessors
  • Replacement for Rockwell / GTE / CMD / Synertek / MOS Technology NMOS 6522 and CMOS 65C22 VIA′s

  Quick Links

Order

Sample (RFS)

Quote (RFQ)

W65C22S Datasheet

 RoHS, Green Compliant

Design Kits

Development Tools

Chip Applications

Application Guide

Packaging
and
Pricing

Plastic Dual-In-Line, 40 pins
W65C22S6TPG–14
$8.04
Plastic Leaded Chip Carrier, 44 pins
  W65C22S6PLG–14
$8.04

Quad Flat Pack, 44 pins
W65C22SQ–6
$8.64
