PCB Design Kits Download & Installation Guide


Step 1

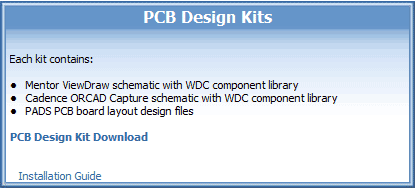

The FreeSDK can be found on our Design Kits page.

FreeSDK screen shot


Click on the PCB Design Kit Download button.



Step 2

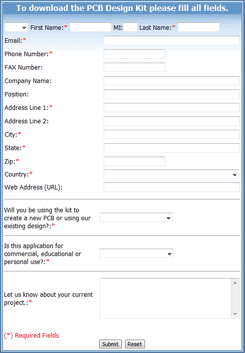

Fill in the web form. Note that required fields are marked by * red asterisks.
FreeSDK form


After completing the form click on the submit button.

Step 3

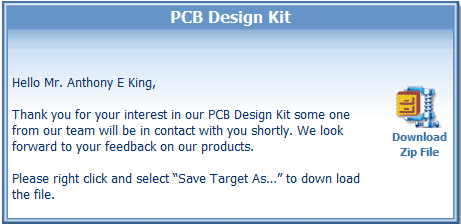

Download the software


Click on the FreeSDK Download button.

Step 4

Choose Run to Install the Software


When the following popup appears choose Run.

Step 5

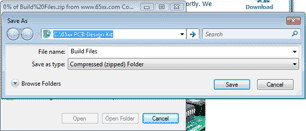

The file should download


The files will be saved to "C:\" on your computer hard drive.

Step 6

You can open an windows explorer page view your zip file "Build Files" and extract them to which ever directoy you like.
